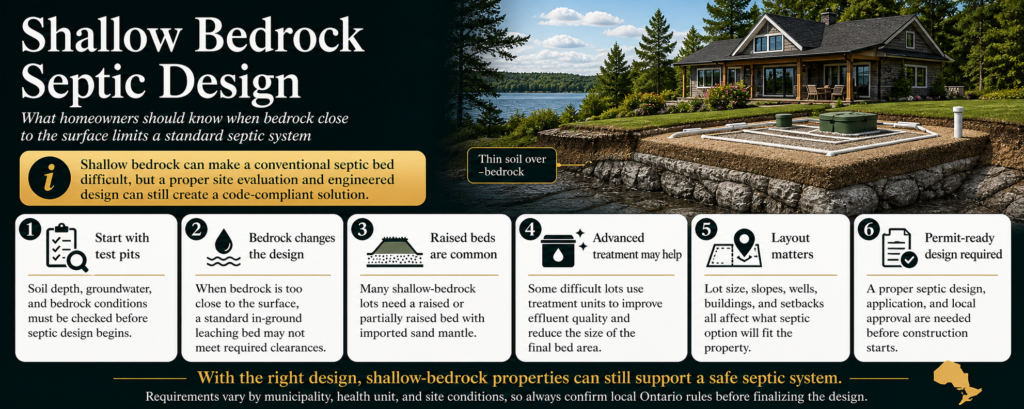

Shallow Bedrock Septic Design in Ontario: What Your Options Are

Bedrock Under Your Lot in Haliburton or Frontenac? Here Is What That Actually Means for Septic.

Shallow bedrock is one of the toughest septic design challenges in Ontario — and one of the most common in the Canadian Shield regions of Haliburton, Frontenac, Renfrew, and parts of Grey-Bruce. It is not a dead end. But it requires a different approach, a more experienced designer, and a realistic budget that accounts for what the site actually demands.

The problem with shallow bedrock is fundamentally the same as with a high water table: there is not enough usable soil depth below the leaching bed for the required vertical separation. Bedrock stops the effluent from percolating and does not provide the biological treatment that happens in soil. The solution is to achieve the required depth of unsaturated soil above the bedrock by building the system up rather than down.

What makes bedrock more challenging than a high water table is that bedrock is rigid. You cannot drain around it, you cannot depress it seasonally, and you cannot predict its depth and character without proper investigation. Two lots side by side on a Canadian Shield property can have completely different bedrock profiles. That variability is what makes bedrock sites genuinely harder to design and more important to assess carefully.

Why Bedrock Creates a Septic Problem

Under Part 8 of the Ontario Building Code, the minimum vertical separation between the bottom of the stone distribution layer in a leaching bed and the top of bedrock is 900 millimetres — exactly the same requirement as for the seasonal high water table.

This separation exists because the unsaturated soil between the leaching bed and any limiting layer — whether that is bedrock or a water table — is where most of the biological and physical treatment of septic effluent actually occurs. Pathogens are filtered and die-off in the soil. Nutrients are absorbed and transformed. Suspended solids are trapped. None of this happens in bedrock.

If bedrock is encountered at, say, 400mm below the surface in the proposed leaching bed area, the 900mm requirement cannot be met in native soil. The only solution under the Building Code is to raise the leaching bed above grade using imported certified fill material, achieving the required 900mm of unsaturated material (fill plus native soil above bedrock) below the distribution stone.

Bedrock Is Not Uniform — And That Matters

One of the most important things to understand about bedrock lots on the Canadian Shield is that bedrock depth and character vary enormously across a single property. A test pit dug in one corner of your lot might hit solid granite at 200mm. A pit dug 15 metres away might find 600mm of soil over fractured, weathered rock. Another might find 1.2 metres of soil over competent bedrock.

This variability is why the site assessment on a bedrock lot requires more test pits than a typical clay or sandy soil site. The designer needs to find the area of the lot where the soil over bedrock is deepest and most consistent — that is where the system needs to go. On a lot where every possible location has shallow bedrock, the designer also needs to assess whether the bedrock is fractured or competent, because fractured bedrock presents different (and in some ways greater) groundwater protection concerns than a solid impermeable surface.

Where Shallow Bedrock Is Most Common in Ontario

Shallow bedrock is concentrated in the Canadian Shield regions of Ontario — the ancient granite and gneiss formations that underlie much of the province north and east of a line roughly from Collingwood through Barrie to Kingston. The areas with the highest frequency of shallow bedrock septic challenges:

• Haliburton County — shallow granitic bedrock is one of the defining site constraints across virtually the entire county, from Minden to Dysart to Algonquin Highlands. Almost every rural property purchase in Haliburton involves a bedrock assessment.
• Frontenac County — the Frontenac Arch and surrounding areas have highly variable bedrock depths, from surface outcrop to deeper profiles, within very short distances
• Renfrew County — the Ottawa Valley’s Canadian Shield margins produce frequent shallow bedrock situations
• Hastings County — particularly in the northern areas around Bancroft and the Madawaska Highlands
• Grey-Bruce in its northern areas — the Niagara Escarpment edge and the Bruce Peninsula have limestone bedrock that presents similar challenges to granite Shield bedrock
• Muskoka and Parry Sound — while these regions also have areas of deeper soil, bedrock outcrop is extremely common and essentially defines the character of cottage country in these districts

The Options: What Systems Work on Bedrock Lots

Option 1: Raised Bed Over Bedrock (Most Common)

The standard solution for a bedrock-constrained lot is a raised leaching bed using certified imported fill. The approach is the same as for a high water table — build the system above grade in engineered fill that provides the required 900mm of treatment depth above the bedrock.

The height of the mound depends on how close the bedrock is to the surface. If bedrock is at 300mm depth in the proposed bed area and 900mm separation is required, the fill needs to provide at least 600mm of additional depth below the stone distribution layer, plus the stone layer itself, plus the distribution pipe and cover. The total mound height above existing grade may be 0.8 to 1.5 metres or more depending on the specific geometry.

On bedrock lots, the fill requirement and therefore the cost can be substantial. The lot must also have an area large enough to accommodate the raised mound with all required horizontal setbacks — including the increased setbacks that apply when the bed is elevated above grade (setback distances increase by 2x the height above grade in all directions).

Option 2: Class 4 ATU with Area Bed or Type B Dispersal

Advanced treatment units with area bed dispersal or Type B (shallow buried trench) dispersal offer two advantages on bedrock sites:

Smaller footprint: Area beds and Type B systems cover less ground than conventional raised leaching beds for the same daily design flow. On a bedrock lot where the area of usable soil is limited, a smaller footprint system may fit where a conventional raised bed cannot.

Potentially reduced vertical separation: Some BMEC-authorized area bed systems have vertical separation requirements that differ from the standard 900mm for conventional systems. Because the effluent entering the dispersal area has already been treated to Level IV quality by the ATU, the soil treatment burden is reduced and some systems are designed to operate with less unsaturated depth above bedrock. The specific reduced separation distance varies by technology and BMEC authorization — confirm with your designer which technologies have authorizations appropriate for your bedrock depth.

The tradeoff is cost: a Class 4 ATU adds $10,000 to $25,000 to the system cost compared to a conventional septic tank, plus the mandatory annual maintenance contract. On sites where the ATU enables a system that would otherwise be impossible, that cost is simply the price of being able to use the lot. On sites where a conventional raised bed would fit, the ATU may be an unnecessary expense.

Option 3: Advanced Enviro-Septic (AES) Pipe Configuration

The Advanced Enviro-Septic system — a BMEC-approved passive system — is worth specific mention on bedrock sites because of its flexible pipe configurations. Unlike conventional distribution systems that require specific trench geometries, AES pipes can be installed in curved and angular configurations that navigate around bedrock outcrops, rocky areas, and irregular lot shapes. The system can literally bend around obstacles that a conventional system would require blasting through.

AES functions as both the treatment and dispersal system in one — effluent is treated as it passes through the geotextile fabric around the perforated pipes and then disperses directly into the adjacent soil. No separate sand bed is required in many configurations. On rocky lots where imported fill and large excavations are expensive and difficult, the ability to configure the system around the available soil pockets is a significant practical advantage.

Option 4: Composting Toilet with Greywater System

On very constrained lots where soil depth is minimal across the entire property, a composting toilet combined with a greywater disposal system can significantly reduce the sewage flow that needs to be managed by a leaching bed. Toilet waste — which represents a high proportion of the biological loading — is composted in-unit rather than entering the sewage system. The greywater (sink, shower, laundry drainage) is then disposed of through a much smaller leaching system than would be required for a full sewage system.

This approach is not appropriate for all situations and has limitations — some health units are stricter than others about greywater system requirements, and the composting toilet requires ongoing management that not all property owners are comfortable with. However, on a lot where the available soil area truly cannot support any form of full leaching bed, it may be the only option that keeps the lot buildable.

Note that recent changes to the Ontario Building Code (effective January 2025) have modified requirements in this area — specifically affecting Class 2 greywater systems in some northern rural areas. If you are considering this option, confirm current requirements with your local health unit rather than relying on older guidance.

The Septic Tank on a Bedrock Lot

Even the septic tank itself is affected by bedrock. The Ontario Building Code normally requires a minimum liquid depth of 1,000mm in a septic tank. However, where the excavation is in rock, this is reduced to 900mm. This accommodation recognizes that blasting or drilling a deep pit in bedrock for a tank installation is sometimes not practical, and allows the tank to be shallower in rock conditions.

In practice, on many bedrock lots the septic tank sits partially or fully above grade, covered with fill and landscaped. The inlet pipe from the house must slope continuously from the house to the tank — which can be a design challenge on steep, rocky lots. On some properties, a pumping station is needed to lift sewage to the tank location if the tank must be higher than the house drain elevation.

Assessing a Bedrock Lot Before You Buy

If you are purchasing a rural property in Haliburton, Frontenac, Renfrew, or any other Shield region and the property is on private septic, do not close without understanding the bedrock situation. The difference between a property with adequate soil for a compliant system and one where a system is genuinely difficult or impossible can be tens of thousands of dollars in project cost — or the lot simply being unbuildable as intended.

The questions to get answered before you close:

• What class of system is the existing system, and does the permit documentation show where it is located relative to bedrock?
• If there is no existing system, what does the preliminary site assessment show about soil depth to bedrock in the proposed leaching bed area?
• Is there a large enough area of adequate soil depth to accommodate the required leaching bed with all setbacks met?
• If the system needs to be raised, is there space on the lot for the mound with the increased horizontal setbacks that apply when a bed is above grade?
• Is the bedrock competent or fractured — and does fractured bedrock change the treatment level required?

For a complete due diligence checklist for rural and cottage property purchases, see our guide on buying a home with a septic system in Ontario.

What It Costs

Scenario	Typical Cost Range	Main Cost Drivers
Conventional raised bed on bedrock lot	$22,000 – $45,000	Fill volume, mound height, pump system, access difficulty
Class 4 ATU with area bed on bedrock lot	$30,000 – $55,000	ATU unit cost, fill, maintenance contract, design complexity
AES system on rocky lot	$20,000 – $40,000	Configuration complexity, access, fill if required
Blasting required for tank or pipe access	Add $3,000 – $15,000	Rock removal volume, blasting contractor, disposal
Long pipe run from house to system location	Add $2,000 – $8,000	Distance, terrain, insulation requirements

These ranges are wide because bedrock lots vary enormously in their constraints. A lot with 600mm of soil in a large, accessible area and bedrock only encountered below that is a manageable project. A lot with 200mm of soil across most of the usable area, no road access for large equipment, and the nearest suitable soil pocket behind a rock outcrop from the proposed system route is a genuinely difficult and expensive project.

Get a site assessment before you budget anything. The assessment will tell you which scenario you are actually in. Use our Ontario septic cost calculator as a starting framework, then refine with actual site assessment results.

A lot with shallow bedrock is not the same as a lot that cannot be developed. In most cases, a compliant system can be designed — it will cost more, it will look different from a conventional installation, and it requires more design work to get right. The key is knowing what you are dealing with before you commit to a purchase or a design, and working with a designer who has real experience with Canadian Shield site conditions. That experience is not interchangeable. A designer who has worked on fifty bedrock lots in Haliburton sees possibilities and constraints that someone working from theory alone will miss.
