Well and Septic Setbacks in Ontario: The Complete Distance Guide

Ontario Septic Setbacks: All the Distances You Need, in One Place

The Ontario Building Code sets minimum distances between septic components, wells, water bodies, property lines, and structures. Most homeowners cannot find a clear summary of these numbers — they are buried in tables across multiple sections of Part 8. Here they all are, in plain English.

Before we get to the tables, two things to understand upfront. First, these are minimums — the absolute floor below which a design cannot go. Many health units, conservation authorities, and municipalities apply greater setback distances in sensitive areas, near regulated water bodies, or in source water protection zones. What you find below is the provincial baseline from Part 8 of the Ontario Building Code. Your specific site may be subject to more restrictive requirements.

Second, these setbacks are not negotiable the way zoning setbacks sometimes are. There is no variance process for OBC setbacks. If the design cannot meet these distances on the available lot, the design has to change — or the system has to move. This is why understanding setbacks before purchasing a lot or designing a house is so important. See our guide on the Ontario septic permit process for how setback compliance is verified during the permit review.

The Main Distinction: Septic Tank vs Leaching Bed

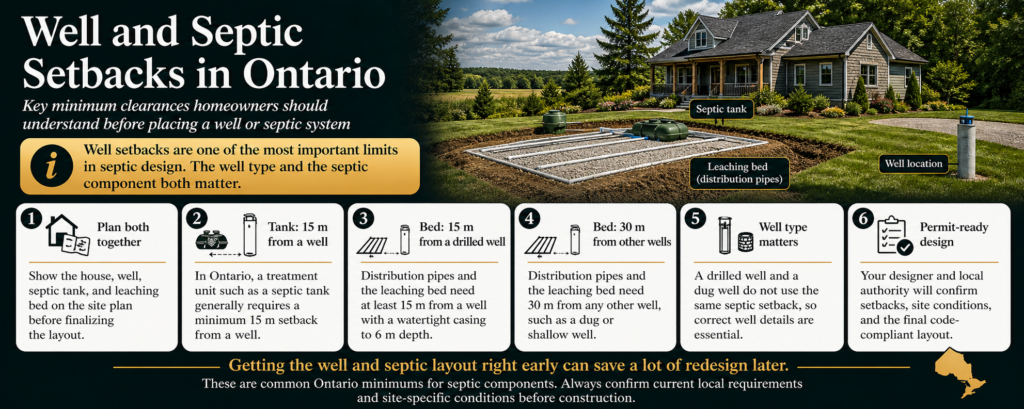

Ontario’s Building Code treats the septic tank (treatment unit) and the leaching bed (distribution piping and absorption area) differently for setback purposes. The leaching bed has larger required distances from wells and water bodies than the tank does — because the leaching bed is where effluent contacts the soil and the greatest groundwater protection concern exists.

When reading any setback information, always confirm which component is being measured — the tank or the bed. A designer who tells you the system is “15 metres from the well” needs to specify which part of the system that measurement applies to.

Leaching Bed Setback Distances (Class 4 — Most Common System)

These are the minimum horizontal distances from the distribution pipes and leaching chambers (the actual leaching bed) to various features. Source: Table 8.2.1.6.B of the Ontario Building Code.

Septic Tank Setback Distances (Class 4)

The septic tank (and other treatment units) have different — and in most cases smaller — required setbacks than the leaching bed. Source: Table 8.2.1.6.A of the Ontario Building Code.

The Raised System Multiplier

Here is the rule that surprises most people designing systems on constrained lots: when a leaching bed is raised above existing grade — a mounded or at-grade system installed in imported fill — all horizontal setback distances must be increased by 2 times the height of the raised portion above existing grade.

The formula: increased setback = standard setback + (2 x height above grade)

In practice this means: if a raised leaching bed sits 1 metre above existing grade, every standard setback distance increases by 2 metres. The 15-metre setback from a drilled well becomes 17 metres. The 3-metre setback from the property line becomes 5 metres. The 5-metre setback from the house becomes 7 metres.

This matters enormously on tight lots where a raised system is required due to a high water table or shallow bedrock. A lot that could just barely fit an in-ground system may not be able to fit a raised system once the increased setbacks are applied. This calculation must be done during the design phase — not at the permit application stage.

Complete Reference Table: All Common Setbacks at a Glance

This table consolidates the most commonly needed setback distances for a standard in-ground Class 4 system (leaching bed and tank). Raised system setbacks require adding the raised system multiplier as described above.

*The 30m / 10m waterfront distances are for the leaching bed and tank respectively, measured to the high water mark of a lake, river, or wetland. These are enforced specifically on waterfront and near-waterfront properties.

How Setbacks Interact with Lot Size and Layout

On a generous rural lot, setbacks are rarely a binding constraint — there is simply enough space to locate the system well clear of all required distances. On smaller lots, near-water lots, and properties with wells, structures, and property lines converging, the setbacks become the primary design constraint. The system can only go where all the setback circles overlap in a usable area.

This is why experienced septic designers — and the health units that review their submissions — start with a scaled site diagram showing all setback distances before any other design decisions are made. The location of the usable area determines the system, not the other way around.

Common situations where setbacks control the design:

• Lots with both a drilled well and a dug well — the dug well’s 30-metre setback for the leaching bed is the controlling constraint. Even if the drilled well is 20 metres away and technically fine, a dug well within 30 metres means the leaching bed cannot be placed within that radius.
• Lots near water with tight dimensions — the 30-metre waterfront setback combined with other setbacks can leave very little usable area on a narrow cottage lot, often requiring a compact Class 4 system rather than a conventional raised bed.
• Lots with wells on neighbouring properties — the setback rules apply to all wells within the required distance, not just your own. If your neighbour’s dug well is 25 metres from your lot line, your leaching bed must still be 30 metres from that well. This can eliminate large portions of your property as usable leaching bed area.
• Lots with existing structures close to the proposed system — the 5-metre setback from buildings applies in both directions. A proposed system must be 5 metres from all structures, and future structures must maintain that distance from the system.

What the Well Regulation Adds

Ontario’s Wells Regulation (O. Reg. 903) governs well construction and includes a complementary set of minimum separation distances that apply from the well’s perspective — i.e., how far away a new well must be from existing or future septic components. These distances mirror the Building Code setbacks:

• A drilled well with watertight casing extending more than 6 metres below grade: minimum 15 metres from any septic system component
• Any other well (dug, bored, shallow drilled casing less than 6m): minimum 30 metres from any septic component

The practical implication: if you are planning to add a well on a property that already has a septic system, the new well must comply with both the Well Regulation and the Building Code setbacks. The same distances apply whether you are designing the system around an existing well or designing a well around an existing system.

The Wells Regulation also recommends — as a best management practice, though not a legal requirement — that new wells be located upgradient (uphill in the direction of groundwater flow) from septic systems wherever possible. On sloping lots where this is achievable, it provides an additional margin of protection beyond the minimum setback distance.

When Standard Setbacks Are Not Enough

The minimum setback distances in Part 8 are the provincial floor. In several situations, the health unit, Conservation Authority, or municipality can and does require greater distances:

• Source water protection areas — under Ontario’s Clean Water Act, properties in designated source water protection areas may be subject to enhanced setback requirements beyond the OBC minimums. Check with your local Conservation Authority whether your property is in a source water protection zone.
• Fractured bedrock — on lots where fractures could provide rapid pathways for contaminant movement, the health unit may require greater setbacks to wells or water bodies than the OBC minimums.
• High-permeability soils — very fast-draining soils (T-time under 1 min/cm) can allow effluent to reach groundwater very quickly, and some health units require increased setbacks in these conditions.
• Watershed-specific rules — the Lake Simcoe Protection Plan and similar watershed plans impose additional requirements in their jurisdictions that may exceed OBC setbacks.

Before finalizing any system design, confirm with your local health unit whether any enhanced setback requirements apply to your property. Do not assume the OBC minimums are the only numbers that matter.

Setbacks and the House Design: Which Comes First?

On a private-service lot in Ontario, the septic system layout — driven by soil, setbacks, and available area — should inform the house design, not the other way around. Designing the house first and then trying to fit the septic system in the remaining space is one of the most reliable ways to create expensive problems.

The setback circles from the well, property lines, water bodies, and any neighbouring wells need to be drawn on the site plan before the house footprint is placed. The intersection of those circles determines what area is available for the leaching bed. The house, driveway, and all other site elements then need to fit around what the lot can actually support.

This is not theoretical. Every year, property owners in Ontario discover at the permit stage that their house design — which they have already invested in — is not compatible with a compliant septic system on their lot. The fix at that point is expensive: either redesign the house, redesign the system to fit in a more constrained location, or abandon one or both. Starting with the septic layout avoids all of this.

Setbacks are not arbitrary bureaucracy. The distances between a leaching bed and a well were arrived at through research on how far effluent travels through various soil types before pathogens and nutrients are removed to safe levels. A leaching bed too close to a well is a genuine health risk, not a technical violation. Understanding the distances and designing around them from the start is how you end up with a compliant system on a workable site plan.
